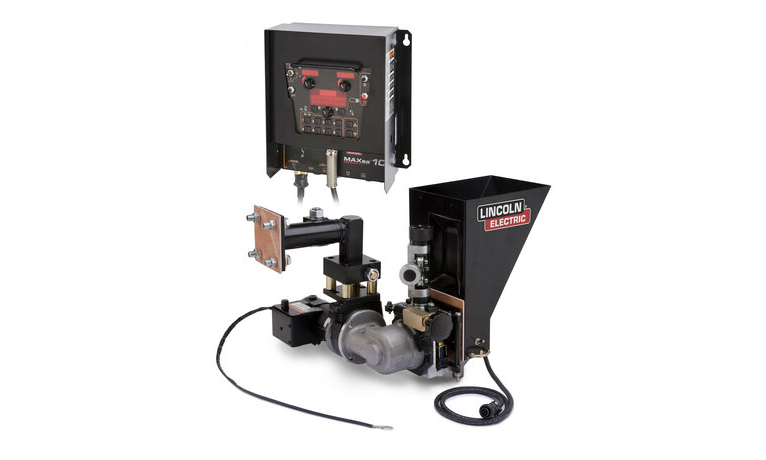

Designed specifically for hard automation applications, the MAXsa® 22 Feed Head delivers accurate wire feeding of large diameter submerged arc wires. Based on Lincoln’s proven gearbox and cast aluminum feedplate, the MAXsa® 22 model features a 40VDC permanent magnet, high torque motor that delivers plenty of traction to push up to 7/32 in. (5.6 mm) diameter solid wire. A top speed of up to 500 ipm (12.7 m/min) can be achieved by changing the gear ratio.

Features

• Flexible Configuration - Can be used in single, tandem, Twinarc or multiple arc applications.

• Closed Loop Speed Control - Facilitates full control over starting, running and stopping wire feed speed.

• Wide Range of Wire Feed Speed – Gear ratio conversion kits allow for a wide range of WFS capabilities to match the requirements of your application.

• Rotatable feed head allows flexible, accurate setup for fixturing.

• Standard Accessories – Including an adjustable wire straightener, cross-seam adjuster and electrical valve flux hopper and mounting bracket for TC-3 carriage.
